Parallelism in the DFPT formalism

Atomic displacements, homogeneous electric fields, strain.

This lesson aims at showing how to use the parallelism for all the properties that are computed on the basis of the density-functional perturbation theory (DFPT) part of ABINIT, i.e.:

  • responses to atomic displacements (to compute phonon frequencies, band structures, … )
  • responses to homogeneous electric fields (dielectric constant, Born effective charges, Infra-red characteristics )
  • responses to strain (elastic constants, piezoelectric constants …)

Such computations are realized when one of the input variables rfphon, rfelfd or rfstrs are non-zero, which activates optdriver=1. You are supposed to be well-familiarized with such calculations before starting the present tutorial. See the input variables described in dfpt varset and the tutorial Response-Function 1 and subsequent tutorials.

You will learn about the basic implementation of parallelism for DFPT calculations, then will execute a very simple, quick calculation for one dynamical matrix for FCC aluminum, whose scaling is limited to a few dozen computing cores, then you will execute a calculation whose scaling is much better, but that would take a few hours in sequential, using a provided input file.

For the last section of that part, you would be better off having access to more than 100 computing cores, although you might also change the input parameters to adjust to the machine you have at hand. For the other parts of the tutorial, a 16-computing-core machine is recommended, in order to perform the scalability measurements.

This lesson should take less than two hours to be done if a powerful parallel computer is available.

You are supposed to know already some basics of parallelism in ABINIT, explained in the tutorial A first introduction to ABINIT in parallel.

1 The structure of the parallelism for the DFPT part of ABINIT

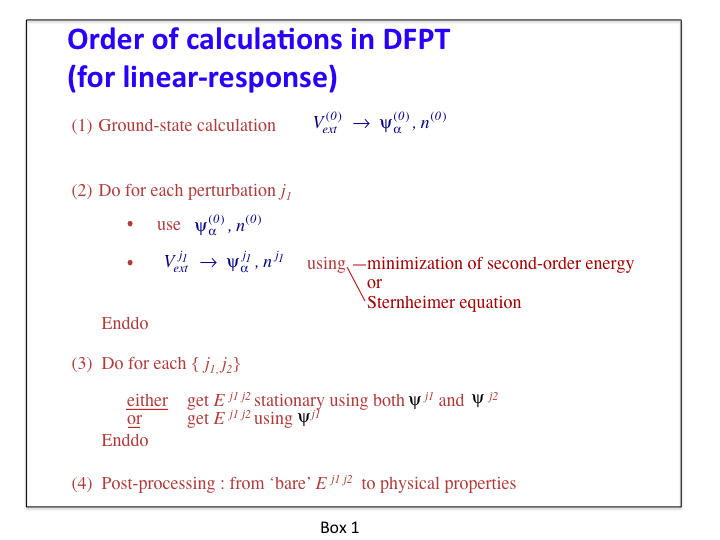

1.1. Let us recall first the basic structure of typical DFPT calculations summarized in box 1.

Schema 1

The step 1 is done in a preliminary ground-state calculation (either by an independent run, or by computing them using an earlier dataset before the DFPT calculation). The parallelisation of this step is examined in a separate lesson.

The step 2 and step 3 are the time-consuming DFPT steps, to which the present tutorial is dedicated, and for which the implementation of the parallelism will be explained. They generate different files, and in particular, one (or several) DDB file(s). As explained in related tutorials (see e.g. Response-Function 1), several perturbations are usually treated in one dataset (hence the “Do for each perturbation”-loop in step 2 of this Schema). For example, in one dataset, although one considers only one phonon wavevector, all the primitive atomic displacements for this wavevector (as determined by the symmetries) can be treated in turn.

The step 4 refers to MRGDDB and ANADDB post-processing of the DDB generated by steps 2 and 3. These are not time-consuming sections. No parallelism is needed.

1.2. The equations to be considered for the computation of the first-order wavefunctions and potentials (step 2 of box 1), which is the really time-consuming part of any DFPT calculation, are presented in box 2.

Schema 2

The parallelism currently implemented for the DFPT part of ABINIT is based on the parallel distribution of the most important arrays: the set of first-order and ground-state wavefunctions.
While each such wavefunction is stored completely in the memory linked to one computing core (there is no splitting of different parts of one wavefunction between different computing cores - neither in real space nor in reciprocal space), different such wavefunctions might be distributed over different computing cores. This easily achieves a combined k point, spin and band index parallelism, as explained in box 3.

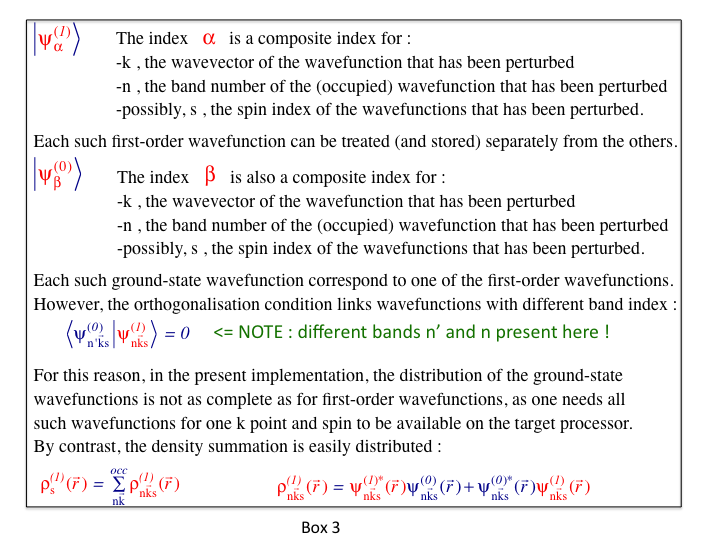

Schema 3

1.3. The parallelism over k points, band index and spin for the set of wavefunctions is implemented in all relevant steps, except for the reading (initialisation) of the ground-state wavefunctions (from an external file). Thus, the most CPU time-consuming parts of the DFPT computations are parallelized.
The following are not parallelized:

  • input of the set of ground-state wavefunctions
  • computing the first-order change of potential from the first-order density, and similar operations that do not depend on the bands or k points.

In the case of small systems, the maximum achievable speed-up will be limited by the input of the set of ground-state wavefunctions. For medium to large systems, the maximum achievable speed-up will be determined by the operations that do not depend on the k point and band indices.
Finally, the distribution of the set of ground-state wavefunctions to the computing cores that need them is partly parallelized, as no parallelism over bands can be exploited.


Before continuing you might work in a different subdirectory as for the other lessons. Why not “work_paral_dfpt”? All the input files can be found in the ~abinit/tests/tutoparal/Input directory. You might have to adapt them to the path of the directory in which you have decided to perform your runs. You can compare your results with reference output files located in ~abinit/tests/tutoparal/Refs.

In the following, when “(mpirun …) abinit” appears, you have to use a specific command line according to the operating system and architecture of the computer you are using. This can be for instance: mpirun -np 16 abinit

2 Computation of one dynamical matrix (q =0.25 -0.125 0.125) for FCC aluminum

We start by treating the case of a small systems, namely FCC aluminum, for which there is only one atom per unit cell. Of course, many k points are needed.
The input files can be found in the directory ~abinit/tests/tutoparal/Input.

2.1. The first step is the pre-computation of the ground state wavefunctions. This is driven by the files tdfpt_01.files (and You should edit them and examine them.

One relies on a k-point grid of 8x8x8 x 4 shifts (=2048 k points), and 5 bands. For this ground-state calculation, symmetries can be used to reduce drastically the number of k points: there are 60 k points in the irreducible Brillouin zone (this cannot be deduced from the examination of the input file, though). This calculation is very fast, actually.
You can launch it:

(mpirun ...)  abinit < tdfpt_01.files > tdfpt_01.log

A reference output file is available in ~abinit/tests/tutoparal/Refs , under the name tdfpt_01.out. It was obtained using 4 computing cores, and took a few seconds.

2.2. The second step is the DFPT calculation, for which the files are tdfpt_02.files (and

There are three perturbations (three atomic displacements). For the two first perturbations, no symmetry can be used, while for the third, two symmetries can be used to reduce the number of k points to 1024. Hence, for the perfectly scalable sections of the code, the maximum speed up is 5120 (=1024 k points * 5 bands), if you have access to 5120 computing cores. However, the sequential parts of the code dominate at a much, much lower value. Indeed, the sequential parts is actually a few percents of the code on one processor, depending on the machine you run. The speed-up might saturate beyond 4 and 8 (depending on the machine).

First copy the output of the ground-state calculation so that it can be used as the input of the DFPT calculation:

cp tdfpt_01.o_WFK tdfpt_02.i_WFK
cp tdfpt_01.o_WFK tdfpt_02.i_WFQ

Then, you can launch the calculation:

(mpirun ...)  abinit < tdfpt_02.files > tdfpt_02.log

A reference output file is given in ~tests/tutoparal/Refs , under the name tdfpt_02.out. Edit it, and examine some information …
The calculation has been made with four computing cores:

-   nproc =    4

The wall clock time is less than 50 seconds :

- Proc.   0 individual time (sec): cpu=         48.5  wall=         48.5


 Calculation completed.
.Delivered    0 WARNINGs and   3 COMMENTs to log file.
+Overall time at end (sec) : cpu=        194.1  wall=        194.1

The major result is the phonon frequencies:

  Phonon wavevector (reduced coordinates) :  0.25000 -0.12500  0.12500
 Phonon energies in Hartree :
   6.944980E-04  7.756637E-04  1.145943E-03
 Phonon energies in meV     :
-  1.889825E+01  2.110688E+01  3.118270E+01
 Phonon frequencies in cm-1    :
-  1.524247E+02  1.702385E+02  2.515054E+02
 Phonon frequencies in Thz     :
-  4.569578E+00  5.103622E+00  7.539943E+00
 Phonon energies in Kelvin  :
-  2.193049E+02  2.449349E+02  3.618597E+02

2.3. Because this test case is quite fast, you should play a bit with it. In particular, run it several times, with an increasing number of computing cores (let’s say, up to 32 computing cores, at which stage you should have obtained a saturation of the speed-up). You should be able to obtain the following.

  1. The result is independent (to an exquisite accuracy) of the number of computing cores that is used
  2. The timing section reveals that the reading of the ground-state wavefunction file is the limiting step for the parallelisation

Concerning the latter, you will need to understand, in the output file, the timing section. It is present a bit before the end of the output file:

- For major independent code sections, cpu and wall times (sec),
-  as well as % of the time and number of calls for node 0-
- routine                        cpu     %       wall     %      number of calls
- fourwf(pot)                   19.834  10.2     19.794  10.2         187989
- inwffil                        7.387   3.8      7.390   3.8             10
- fourwf(G->r)                   6.721   3.5      6.869   3.5         116049
- cgwf3-O(npw)                   2.226   1.1      2.228   1.1             -1
- vtorho3-kpt loop               2.181   1.1      2.163   1.1             33
- nonlop(forces)                 1.924   1.0      1.947   1.0          90880
- projbd                         1.775   0.9      1.734   0.9         318634
- nonlop(apply)                  1.690   0.9      1.719   0.9         116309
- vtowfk3(contrib)               1.654   0.9      1.556   0.8             -1
- 61   others                    2.819   1.5      2.803   1.4
- subtotal                      48.211  24.8     48.203  24.8

- For major independent code sections, cpu and wall times (sec),
- as well as % of the total time and number of calls

- routine                         cpu     %       wall     %      number of calls
-                                                                  (-1=no count)
- fourwf(pot)                   79.067  40.7     79.326  40.9         752230
- inwffil                       29.548  15.2     29.560  15.2             40
- fourwf(G->r)                  25.828  13.3     25.898  13.3         447552
- cgwf3-O(npw)                   9.096   4.7      9.081   4.7             -4
- vtorho3-kpt loop               8.672   4.5      8.611   4.4            132
- nonlop(forces)                 7.707   4.0      7.716   4.0         363520
- projbd                         6.925   3.6      6.668   3.4        1275084
- nonlop(apply)                  6.810   3.5      6.864   3.5         465510
- vtowfk3(contrib)               6.280   3.2      6.199   3.2             -4
- getghc-other                   3.176   1.6      3.195   1.6             -4
- status                         2.615   1.3      2.534   1.3         919162
- vtorho3:synchro                2.029   1.0      2.040   1.1            132
- 58   others                    4.175   2.2      4.217   2.2

- subtotal                     191.928  98.9    191.909  98.9

It is made of two groups of data. The first one corresponds to the analysis of the timing for the computing core (node) number 0. The second one is the sum over all computing cores of the data of the first group. Note that there is a factor of four between these two groups, reflecting that the load balance is good.

Let’s examine the second group of data in more detail. It corresponds to a decomposition of the most time-consuming parts of the code. Note that the subtotal is 98.9 percent, thus the statistics is quite good. Without going into the detail of each routine, for the present purpose, the most significant information is that among all the timed sections of the code, only “inwffil” and “vtorho3:synchro” will not benefit from parallelism.
“inwffil” is a subroutine whose job is to read the ground-state wavefunctions (you can find the source of the “inwffil” routine on GitHub or on the ABINIT Web site). As mentioned in the section 1, the reading of the ground-state wavefunctions is not done in parallel in the case of the DFPT computations (note that the reading is actually parallelized for e.g. ground-state calculations). In the output file provided as a reference (with four computing cores), the “inwffil” wall clock time is 7.387 seconds, on a total of 48.211 secs. By increasing the number of computing cores, it will be possible to decrease the total time, but not below the value of 7.387 seconds in any case. You should observe a similar behaviour with your own tests.

3 Computation of one perturbation for a slab of 29 atoms of barium titanate

3.1. This test, with 29 atoms, is slower, but scales better than the Al FCC case. It consists in the computation of one perturbation at qpt 0.0 0.25 0.0 for a 29 atom slab of barium titanate, artificially terminated by a double TiO2 layer on each face, with a reasonable k-point sampling of the Brillouin zone.

The symmetry of the system and perturbation will allow to decrease this sampling to one quarter of the Brillouin zone. E.g. with the k-point sampling ngkpt 4 4 1 , there will be actually 4 k-points in the irreducible Brillouin zone for the Ground state calculations. For the DFPT case, only one symmetry will survive, so that, after the calculation of the frozen-wavefunction part (for which no symmetry is used), the self-consistent part will be done with 8 k points in the corresponding irreducible Brillouin zone. With the sampling 8 8 1, there will be 32 k points in the irreducible Brillouin zone for the DFPT case. There are 120 bands. Note that the value of ecut that is used in the present tutorial is too low to obtain physical results (it should be around 40 Hartree).

As in the previous case, a preparatory ground-state calculation is needed.

The input files are provided, in the directory ~abinit/tests/tutoparal/Input . The preparatory step is governed by tdfpt_03.files (and The real (=DFPT) test case is governed by tdfpt_04.files (and The reference output files are present in ~abinit/tests/tutoparal/Refs: tdfpt_0324.out and tdfpt_0432.out. The naming convention is such that the number of cores used to run them is added after the name of the test: the file was run with 24 cores, while the was run with 32 cores. The preparatory step took about 5 minutes, and the DFPT step took about 5 minutes as well.

You can run now these test cases. For tdfpt_03, you might need to change the npband value (presently 6), if you are not using 24 processors. At variance, for tdfpt_04, no adaptation of the input file is needed to be able to run on an arbitrary number of processors.
To launch the ground-state computation, type:

(mpirun ...)  abinit < tdfpt_03.files > tdfpt_03.log

then copy the output of the ground-state calculation so that it can be used as the input of the DFPT calculation :

cp tdfpt_03.o_WFK tdfpt_04.i_WFK
cp tdfpt_03.o_WFK tdfpt_04.i_WFQ

and launch the calculation :

(mpirun ...)  abinit < tdfpt_04.files > tdfpt_04.log

Now, examine the obtained output file for test 04, especially the timing.

In the reference file ~abinit/tests/tutoparal/Refs/tdfpt_0432.out, with 32 computing cores, the timing section delivers:

- For major independent code sections, cpu and wall times (sec),
- as well as % of the total time and number of calls

- routine                         cpu     %       wall     %      number of calls
-                                                                  (-1=no count)
- projbd                      3046.599  34.0   3065.259  34.0         171639
- fourwf%(pot)                2545.342  28.4   2561.313  28.4         103098
- nonlop(apply)               1059.279  11.8   1066.034  11.8          85818
- fourwf%(G->r)                531.322   5.9    534.929   5.9          50112
- vtorho3:synchro              444.450   5.0    448.598   5.0            576
- nonlop(forces)               195.017   2.2    195.487   2.2         100800
- newkpt(excl. rwwf   )        179.142   2.0    179.185   2.0            -32
- vtowfk3(contrib)             137.486   1.5    137.878   1.5            -32
- pspini                        97.276   1.1     99.901   1.1             32


- 45   others                    0.000   0.0      0.000   0.0

- subtotal                    8760.405  97.8   8811.874  97.8

You will notice that the sum of the major independent code sections is again very close to 100%. You might now explore the behaviour of the CPU time for different numbers of compute cores (consider values below and above 32 processors). Some time-consuming routines will benefit from the parallelism, some other will not.

The kpoint + band parallelism will efficiently work for many important sections of the code: projbd, fourwf%(pot), nonlop(apply), fourwf%(G->r). In this test, the product nkpt (the effective number of k points for the current perturbation) times nband is 8*120=960. Of course, the total speed-up will saturate well below this value, as there are some non-parallelized sections of the code.

In the above-mentioned list, the kpoint+band parallelism cannot be exploited (or is badly exploited) in several sections of the code : “vtorho3:synchro”, about 5 percents of the total time of the run on 32 processors, “newkpt(excl.rwwf)”, about 2 percents, vtowfk3(contrib), about 1.5 percent, “pspini”, about 1 percent. This amounts to about 10% of the total, and, according to Amdahl’s law, the saturation will happen soon, with less than 100 processors.

3.2. A better parallelism can be seen if the number of k-points is brought back to a converged value (8x8x1). Try this if you have more than 100 processors at hand.

Set in your input file

   ngkpt 8 8 1    ! This should replace ngkpt 4 4 1
   npkpt 16       ! This should replace npkpt 4

Also, set in

   ngkpt 8 8 1    ! This should replace ngkpt 4 4 1

and launch again the preliminary step, then the DFPT step. Then, you can practice the DFPT calculation by varying the number of computing cores. For the latter, you could even consider varying the number of self-consistent iterations to see the initialisation effects (small value of nstep), or target a value giving converged results (nstep 50 instead of nstep 18). The energy cut-off might also be increased (e.g. ecut 40 Hartree gives a much better value). Indeed, with a large value of k points, and large value of nstep, you should be able to obtain a speed-up of more than one hundred for the DFPT calculation, when compared to a sequential run (see below). Keep track of the time for each computing core number, to observe the scaling.

As a typical observation, the Wall clock timing decreases from

- Proc.   0 individual time (sec): cpu=       2977.3  wall=       2977.3

with 16 processors to

- Proc.   0 individual time (sec): cpu=        513.2  wall=        513.2

with 128 processors.

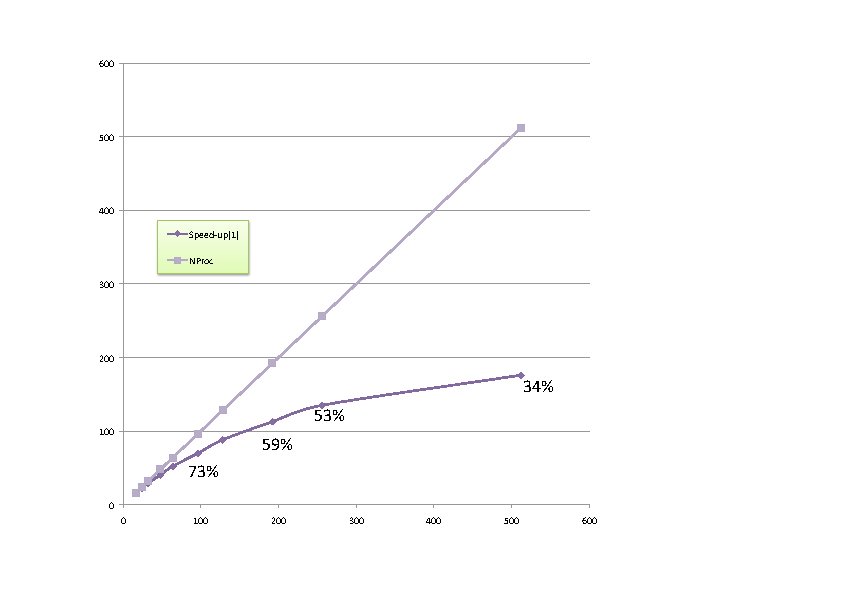

The next figure presents the speed-up of a typical calculation with increasing number of computing cores (also, the efficiency of the calculation).

Schema 1

Beyond 300 computing cores, the sequential parts of the code start to dominate. With more realistic computing parameters (ecut 40), they dominate only beyond 600 processors.

This last example is the end of the present tutorial. You have been explained the basics of the current implementation of the parallelism for the DFPT part of ABINIT, then you have explored two test cases: one for a small cell materials, with lots of k points, and another one, medium-size, in which the k point and band parallelism can be used efficiently even for more than one hundred computing cores.
